Nirmal Fabricators Limited

Electrical Products List

» Control Panels 230 Vac
» Control Panels 24 Vdc
» Transmitters 433,92 Mhz Rolling Code
» Receivers Code. Variable 433,92 Mhz
» Programming and Control Systems
» Warning and Signal Devices
» Flashing Lights

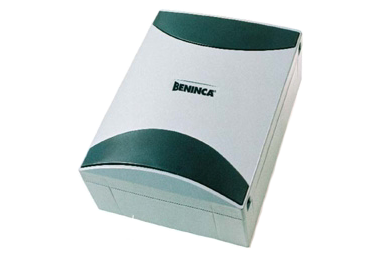

Control Panels 230 Vac

BRAIN	BRAIN.P

• Control panel for 1 or 2 motors, ideal for hinged or sliding doors. • Simple to install thanks to the integrated display. • Multiple operating logics. • Separate electric regulation of torque and of work times for each motor. • Separate slowing-down on opening and closing for each motor. • Extractable terminal boards. • Prepared for plug-in radio receiver. • Separate opening and closing limit switch inputs for each motor. • Programmable timer input for centralised closures. • Input for 8K2 safety sensitive edge. • May also be used with hydraulic operators. • Possibility of viewing the number of actual manoeuvres.	• Control panel for 1 or 2 motors, ideal for hinged or sliding doors. • Simple to install thanks to the integrated display. • Multiple operating logics. • Separate electric regulation of torque and of work times for each motor. • Separate slowing-down on opening and closing for each motor. • Extractable terminal boards. • Prepared for plug-in radio receiver. • Separate opening and closing limit switch inputs for each motor. • Programmable timer input for centralised closures. • Input for 8K2 safety sensitive edge. • May also be used with hydraulic operators. • Possibility of viewing the number of actual manoeuvres. • Open-close buttons incorporated in the control panel.

BRAIN

BRAIN.P

• Control panel for 1 or 2 motors, ideal for hinged or sliding doors.
• Simple to install thanks to the integrated display.
• Multiple operating logics.
• Separate electric regulation of torque and of work times for each motor.
• Separate slowing-down on opening and closing for each motor.
• Extractable terminal boards.
• Prepared for plug-in radio receiver.
• Separate opening and closing limit switch inputs for each motor.
• Programmable timer input for centralised closures.
• Input for 8K2 safety sensitive edge.
• May also be used with hydraulic operators.
• Possibility of viewing the number of actual manoeuvres.

HEAD	LOGIC A230.RI

• Control panel for 1 or 2 operators, ideal for swinging gates. • Automatic and semiautomatic function. • Simple diagnostics thanks to the leds that indicate the status of the inputs. • Electric regulation of motor torque. • Plug in terminals. • Complete with integrated radio receiver 433.92Mhz memory capability up to 14 codes and prepared for plug-in radio receiver. • Programmable input for separate photocell on opening. • Pedestrian opening input. • Output for gate open warning lamp 24 Vac. • Output for second radio channel allowing control of other automations.	• Control panel for 1 or 2 operators, ideal for counterweights garage doors series ZED/AU.96. • Automatic and semiautomatic function. • Simple diagnostics thanks to the leds that indicate the status of the inputs. • Electric regulation of motor torque. • Slowing down in opening and closing. • Plug in terminals. • Integrated radio receiver 433.92 Mhz memory capability up to 64 codes. • Inputs for opening and closing limit switches. • Inputs for step-by-step, open, close, stop buttons. • Input for 8K2 safety sensitive edge. • Input for photocell.

HEAD

LOGIC A230.RI

• Control panel for 1 or 2 operators, ideal for swinging gates.
• Automatic and semiautomatic function.
• Simple diagnostics thanks to the leds that indicate the status of the inputs.
• Electric regulation of motor torque.
• Plug in terminals.
• Complete with integrated radio receiver 433.92Mhz memory capability up to 14 codes and prepared for plug-in radio receiver.
• Programmable input for separate photocell on opening.
• Pedestrian opening input.
• Output for gate open warning lamp 24 Vac.
• Output for second radio channel allowing control of other automations.

• Control panel for 1 or 2 operators, ideal for counterweights garage doors series ZED/AU.96.
• Automatic and semiautomatic function.
• Simple diagnostics thanks to the leds that indicate the status of the inputs.
• Electric regulation of motor torque.
• Slowing down in opening and closing.
• Plug in terminals.
• Integrated radio receiver 433.92 Mhz memory capability up to 64 codes.
• Inputs for opening and closing limit switches.
• Inputs for step-by-step, open, close, stop buttons.
• Input for 8K2 safety sensitive edge.
• Input for photocell.

MATRIX	MISE.RI

• Control panel for 1 operator, ideal for sliding gates, series BULL10M/15M/20M without control panel, equipped with encoder, or operator RI.15M. • Simple to install thanks to the integrated display. • Multiple operating logics. • Detection of obstacles and anticrushing protection with an innovative electronic system. • Electronic regulation of torque on opening and closing. • Slowing down in opening and closing. • Electronic braking guarantees precise stopping even with heavy doors. • Plug in terminals. • Integrated radio receiver 433,92 Mhz , memory capability up to 64 codes. • Inputs for opening and closing limit switches. • Programmable timer input for management of centralised closures. • Input for 8K2 safety sensitive edge. • Cycle counter.	• Control panel for 1 operator, ideal for rolling shutters and hydraulic operators. • Simple diagnostics thanks to the leds that indicate the status of the inputs. • Automatic –semiautomatic function. • Plug in terminals. • Integrated radio receiver 433.92 Mhz memory capability up to 64 codes. • Inputs for opening and closing limit switches. • Input programmable as step-by-step or open. • Input for photocell with possibility of exclusion in the opening phase. • LOCK accessory available for control of the 12 Vac electric lock and a courtesy light.

MATRIX

MISE.RI

• Control panel for 1 operator, ideal for sliding gates, series BULL10M/15M/20M without control panel, equipped with encoder, or operator RI.15M.
• Simple to install thanks to the integrated display.
• Multiple operating logics.
• Detection of obstacles and anticrushing protection with an innovative electronic system.
• Electronic regulation of torque on opening and closing.
• Slowing down in opening and closing.
• Electronic braking guarantees precise stopping even with heavy doors.
• Plug in terminals.
• Integrated radio receiver 433,92 Mhz , memory capability up to 64 codes.
• Inputs for opening and closing limit switches.
• Programmable timer input for management of centralised closures.
• Input for 8K2 safety sensitive edge.
• Cycle counter.

• Control panel for 1 operator, ideal for rolling shutters and hydraulic operators.
• Simple diagnostics thanks to the leds that indicate the status of the inputs.
• Automatic –semiautomatic function.
• Plug in terminals.
• Integrated radio receiver 433.92 Mhz memory capability up to 64 codes.
• Inputs for opening and closing limit switches.
• Input programmable as step-by-step or open.
• Input for photocell with possibility of exclusion in the opening phase.
• LOCK accessory available for control of the 12 Vac electric lock and a courtesy light.

DREAM

• Control panel for a 230 Vac operator, ideal for rolling shutters and hydraulic operators. • Integrated receiver 433.92 Mhz, memory capability up to 14 transmitters. • Automatic –semiautomatic function. • Inputs for step-by-step buttons and photocell. • Fixed terminal boards. • Regulation of work time and automatic closing. • Output for controlling a service light .
