Hydro - HD.45 / HD.50 / HD.50AC

Industrial Use For Swinging Gates up to 4.5 to 5 m (max. 500 kg.)

HD.45

Slow reversible hydraulic operator, for gates up to 4.5 m, rear and front joint, with hydraulic slow-down function.

HD.50

Slow reversible hydraulic operator, for gates up to 5 m, rear and front joint, with hydraulic slow-down function.

HD.50AC

Irreversible version HD.50 with opening and closing blocks. Irreversibility guaranteed up to 1.8 m.

Plus

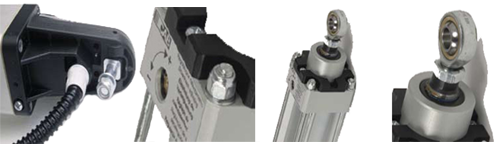

The presence of the rear joint in both versions facilitates installation operations, allowing correct operation even on gates that are not perfectly aligned. Silent operation and fluid movement guaranteed by the presence of the hydraulic slow-down function. The presence of the rear joint with pin and of the adjustable spherical front joint facilitates installation operations, allowing correct operation even on gates that are not perfectly aligned. Adjustable front joint allowing stroke regulation.

Versions

              HD.45                               HD.50                           HD.50AC
