Freedom - Kit For Opening Sliding Gates
Freedom is the BYOU operator for sliding gates up to 300 kg. Simple and easy to install, it has numerous strong features. The inclined position of the control unit inside the motor makes programming operations simple and immediate, while the motor wiring is simplified by the possibility of adjusting its height and depth, by its compact dimensions and ergonomic lines. Equipped with electromechanical limit switches that allow stopping of the motor, Freedom is characterised by an anti-crushing system with amperometric detection and by the possibility of system operation even in a power cut, thanks to batteries that can be perfectly integrated in the motor. Possibility of unlocking with a key.
Specifications
| Technical Data | Freedom |
|---|---|
| Power Supply | 230 Vac |
| Motor Power Supply | 24 Vdc |
| Absorbed Power | 80 W |
| Max. Absorbed Current | 0.6 A |
| Torque | 9 NM |
| Opening Time | 10 m/min. |
| Operation Cycle | Intensive Use |
| Protection Level | IP 44 |
| Operating Temprature | -20°C/+70°C |
| Lubrication | Grease |
| Diving Gear For Rack | M4 Z14 |
| Max. Gate Weight | 300 Kg. |
| Weight | 6.8 Kg. |
Accessories

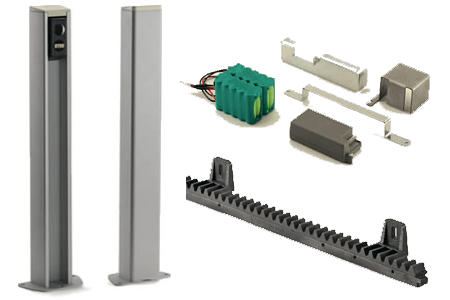

Pair of columns with photocells P.BY and support. Accessories for operation in the absence of electric power, composed of a battery charger, nickel metal hydrate batteries and support. Nylon rack 26x40x1000 mm with slots and screws. Pack of 4 meters.
