Jump - Kit For Residential Sectional Garage Doors
Irreversible 24 Vdc operator for intensive use with built-in control panel and encoder for residential sectional doors. JUMP is characterised by a system for adjusting stroke by means of mechanical stops, and by a belt drive system that allows very silent movement. Easy and immediate to install, its operation is guaranteed even in the absence of electric power thanks to the possibility of supplying the system with batteries. Equipped with internal release and the possibility of unlocking from the outside with the accessory UL.BY. Jump is characterised by a separate galvanised steel guide in three pieces which ensures a fluid, silent movement. Anti-crushing system with amperometric detection and courtesy light integrated in the casing.
Specifications
| Technical Data | Jump |
|---|---|
| Power Supply | 230 Vac |
| Motor Power Supply | 24 Vdc |
| Absorbed Power | 140 W |
| Max. Absorbed Current | 1.0 A |
| Thrust | 600 N |
| Opening Speed | 9.8 m/1 |
| Operation Cycle | Intensive Use |
| Protection Level | IP 40 |
| Operating Temprature | -20°C/+70°C |
| Mechanical Stop | Electronic With Encoder |
| Reciever | Buil in |
| Transmitter | 1 By |
| Weight | 10.5 Kg. |

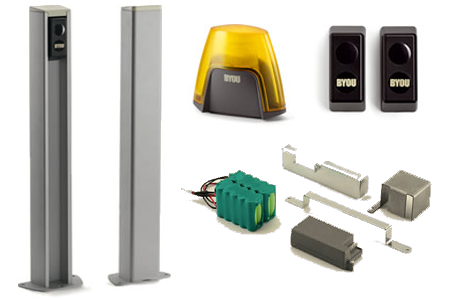

Accessories
Pair of columns with photocells P.BY and support. Accessories for operation in the absence of electric power, composed of a battery charger, nickel metal hydrate batteries and support. 24 Vdc flashing light with built in aerial 433,92 Mhz. Pair of fixed photocells for external fitting.
