Beauty - Kit For Opening Swinging Gates

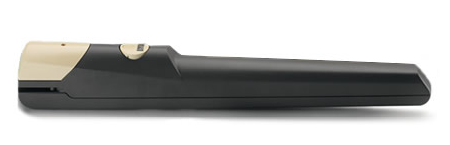

Irreversible 24 Vdc electromechanical operator for the automation of swinging gates up to 2 m long. Beauty is characterised by its reduced dimensions which allow practical wiring and fast and easy installation. Anti-crushing system with amperometric detection. Rolled screw with spherical section allowing maximum sturdiness, silent operation and very easy manual movement. Unlocked with a key.
Specifications
| Technical Data | Beauty |
|---|---|
| Power Supply | 230 Vac |
| Motor Power Supply | 24 Vdc |
| Absorbed Power | 80 W |
| Max. Absorbed Current | 3,5 A |
| Thrust | 1500 N |
| 90° Opening Time | 12/18” |
| Operation Cycle | Intensive Use |
| Protection Level | IP 44 |
| Operating Temprature | -20°C/+70°C |
| Lubrication | Grease |
| Standard Stroke 300 mm | With Mechanical Stops |
| Leaf Max Dimension | 2 m |
| Weight | 4.2 Kg. |

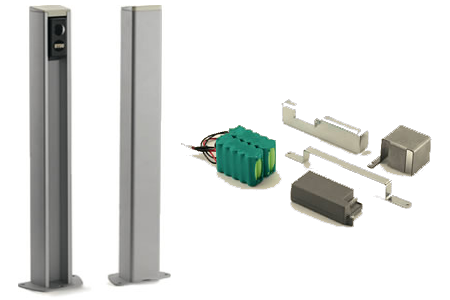

Accessories
Pair of columns with photocells P.BY and support. Accessories for operation in the absence of electric power, composed of a battery charger, nickel metal hydrate batteries and support.
